Product Details
Place of Origin: China
Brand Name: zento
Certification: CE, ROHS, ISO9001
Model Number: ZT-827A
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: carton+ wooden case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 400 unit per month
Product Name: |

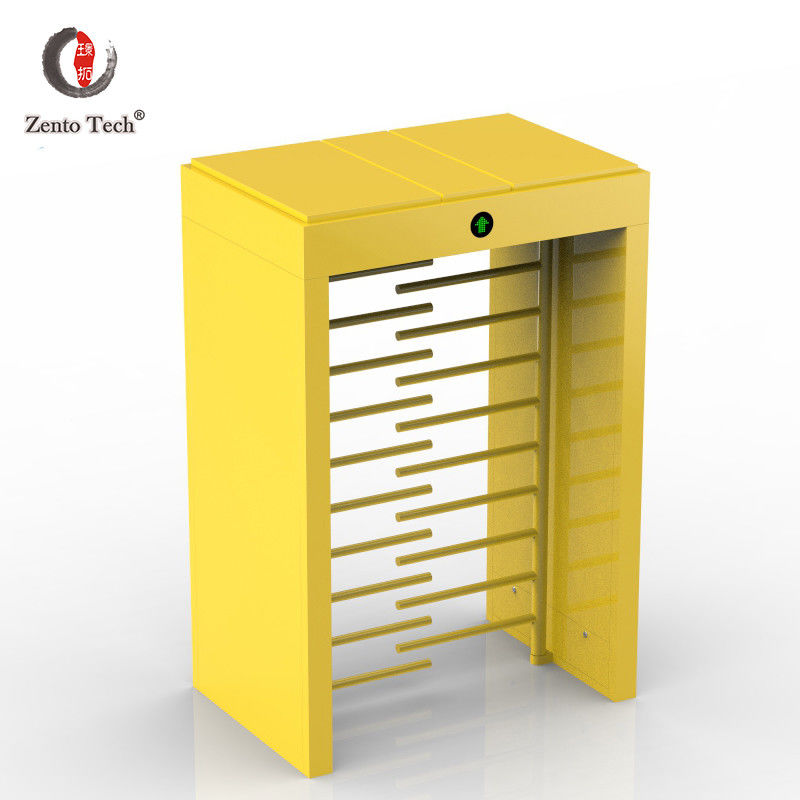

Full Height Turnstile With QR Code Reader |
Access Control: |
ID Card, Fingerprint, Face Recognition |
Anti-climbing: |
Yes |
Anti-tailgating: |
Yes |
Communication Interface: |
RS485 |
Communication Protocol: |
TCP/IP |
Product Name: |
Full Height Turnstile With QR Code Reader |
Access Control: |
ID Card, Fingerprint, Face Recognition |
Anti-climbing: |
Yes |
Anti-tailgating: |
Yes |
Communication Interface: |
RS485 |
Communication Protocol: |
TCP/IP |
Turnstile With Qr Subway Full Height Turnstile Price Full Height Gate System Access Gate Turnstile
Turnstile With Qr Subway Full Height Turnstile Price
We are manufacturer of turnstile with qr, tripod turnstile, waist height turnstile,Speed gate, Flap turnstile, Swing Turnstile, Barrier Gate, LPR parking system, Rising bollards etc. We can supply you our standard turnstile gate and customized your own design turnstiles for you.
A full height turnstile gate is a type of access control device used to manage the flow of people in and out of secured areas. It consists of a revolving gate that extends from floor to ceiling, creating a physical barrier between two spaces. This type of turnstile effectively prevents unauthorized individuals from bypassing the gate by climbing over or crawling under it. Full height turnstile gates are often installed in high-security locations such as airports, government buildings, stadiums, or industrial facilities, where strict access control is required.
304 stainless steel snow sand
>Anti-rust / Wear / High temperature / Corrosion resistance
Sino mould full height turnstile machine core>Die-casting aluminum alloy / Always on power square solenoid
>Good quality and low price / Durable
Turnstile control board
>LED directional indicator
>Dry contact signal
>Connect fire alarm signal
>Memory function
>13 kinds gate mode of entry and exit>Counting function
>With sound and light alarm function
>Support secondary development
We can supply you turnstile with qr with controller system or mechanism only.
Turnstile with QR Function:
Through the built-in small press disk on the main control board, the running state of the programmable device.
Unique two-way anti-inversion function
anti-scour function, when the opening signal is not received, the channel bar will be locked automatically.
the channel is automatically unlocked after the power is cut off, and the function of free rotation can meet the requirements of fire fighting, and the channel is locked and closed automatically after the power is turned on.
with automatic reset function, after opening the gate, when pedestrians do not pass within a specified period of time, the system will automatically cancel the pedestrian traffic authority, and the reset time is 1S~60S adjustable (the default time of the system is 10s).
Turnstile with QR Technical Parameter:
Power voltage | AC220 ±10%V/50 ±10%HZ | Open angle | 120°/90° |
Communication mode | 232/485 TCP/TP | Pass speed | 30 person/minutes |
Movement | Hydraulic movement | Structure | 304 stainless steel |
Relative humidity | None-condensation | Open direction | Single and Double(optional) |
Input signal | 12v DC level or Dry contact signal | Work environment | Outdoo(Canopy)and indoor |
Working Current | ≤2000mA | Temperature | -10 ℃-- 50 ℃ |
Working Noise | Below 65 decibels | Relative humidity | ≤90%, non-condensing |
Choosing a full height turnstile can offer several advantages, particularly in environments where security, controlled access, and durability are critical. Here are the main reasons to opt for a full height turnstile:
### Enhanced Security
1. **Prevent Unauthorized Access**: Full height turnstiles provide a robust physical barrier that is difficult to bypass by climbing over or crawling under, making it highly effective in preventing unauthorized entry.
2. **Strong Deterrent**: The imposing structure acts as a visual and physical deterrent against intruders.
### Controlled Access
3. **Reliable Access Control**: These turnstiles can be integrated with various access control systems, such as card readers, biometric scanners, or keypads, ensuring that only authorized individuals can enter.
4. **Accurate Monitoring**: Allows for precise tracking of who enters and exits the premises, aiding in security and attendance management.
### Durability and Reliability
5. **Built to Last**: Full height turnstiles are made from durable materials like stainless steel, capable of withstanding heavy use and harsh environmental conditions, making them suitable for both indoor and outdoor installations.
6. **Low Maintenance**: Designed for long-term use with minimal maintenance requirements, providing a cost-effective solution over time.
### Versatility
7. **Customizable Configuration**: Can be set up for one-way or bi-directional traffic, catering to different access control needs.
8. **Integration with Systems**: Easily integrates with existing security, attendance, and access control systems for a comprehensive solution.
### Crowd Management
9. **Efficient Flow Control**: Helps manage the flow of people, ensuring orderly entry and exit, which is particularly important in high-traffic areas such as stadiums, transportation hubs, and event venues.
10. **Controlled Throughput**: Regulates the number of individuals passing through in a given timeframe, preventing congestion and ensuring safety.
### Specific Use Cases
11. **High-Security Areas**: Ideal for locations requiring stringent security measures, such as government buildings, military bases, and correctional facilities.
12. **Industrial and Commercial Sites**: Suitable for securing entrances to industrial plants, warehouses, and corporate offices.
13. **Public and Private Venues**: Effective in controlling access to stadiums, amusement parks, educational institutions, and public transportation stations.
### Advantages
- **Maximum Security**: Provides a higher level of security compared to waist-high turnstiles.
- **Controlled Access**: Ensures only authorized personnel gain entry.
- **Durability**: Withstands heavy usage and environmental factors.
- **Flexible Integration**: Works well with various access control and security systems.
### Considerations
- **Higher Initial Cost**: More expensive than simpler turnstile options.
- **Space Requirements**: Needs adequate space for installation.
- **Throughput Rate**: May be slower in handling large crowds compared to other turnstile types.
Choosing a full height turnstile is a strategic decision for facilities that prioritize security, durability, and efficient access control, making it a valuable investment for long-term safety and operational efficiency.
