Product Details
Place of Origin: China
Brand Name: Zento
Certification: CE
Model Number: YHT-55201
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Wooden box package
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 pcs per week
Place Of Origin: |
Guangdong, China |
Keyword: |
Face Camera |
Size: |
5inch,170 Degree IPS LCD Screen |
Protection Level: |
IP66, Certain Dustproof And Waterproof Function |
Power Supply: |
DC12V/2A（±10%） |
Internal Storage Capacity: |
Memory 2G, Storage 8G |
Place Of Origin: |
Guangdong, China |
Keyword: |
Face Camera |
Size: |
5inch,170 Degree IPS LCD Screen |
Protection Level: |
IP66, Certain Dustproof And Waterproof Function |
Power Supply: |
DC12V/2A（±10%） |
Internal Storage Capacity: |
Memory 2G, Storage 8G |
Product Description:

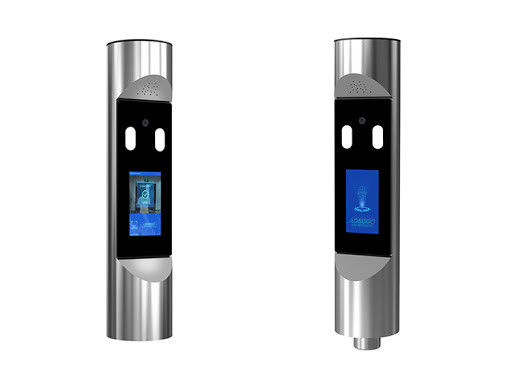

The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition. And it can present the corresponding feedback on the screen. The product can recognize 5 people at the same time, the farthest can recognize the human face as far as 5 meters, and face tracking and detection takes about 20ms. Face feature extraction takes about 300ms; face comparison takes about 0.1ms.
And it has good robustness to light and wear glasses and so on. This product can be equipped with RFID card module, so the system can be realize to use card and face recognition. This product supports a variety of hardware functional interfaces (including: HDMI high-definition output, serial port input/output, network interface/ Wi-Fi access); It has a complete software interface (including: device management, personnel/photo management, record view, etc.)
Product specification:
| Screen parameter | 1024 * 600 7 inches | |
| Video camera | Resolution | 200W pixel |
| Aperture | 2.4 | |
| Focal length | 6mm | |
| White balance | Automatic | |
| Interface | Audio | 1 channel audio input ( line in ); 1 channel audio output ( line out ) |
| Video | HDMI 2.0 type - A interface 1 | |
| Local-storage | Flash memory 8G | |
| Serial communication interface | 1 RS232 interface | |
| Reset interface | Built - in reset button | |
| Wireless communication | 2.4G WI-FI ( optional ) + 13.56M IC card reader ( optional ) | |
| Network interface | 1 RJ45, 10M/100M adaptive Ethernet port | |
| Function | Face detection | At the same time support testing and tracking of 5 people |
| 1:N face recognition | Under the condition of supporting 97 % pass rate, 99.7 % pass rate | |
| 1:1 face comparison | Support optional card swiping module to achieve 1:1 face comparison | |
| Stranger test | Support | |
| Identification distance configuration | Support | |
| UI interface configuration | Support | |
| Device interface | The interface includes equipment management, personnel/ photo management, record query, etc. | |
| Weight | 5.9Kg | |
Details:
